A boiler or steam generator is a device used to create steam by applying heat energy to water. Although the definitions are somewhat flexible, it can be said that older steam generators were commonly termed boilers and worked at low to medium pressure but, at pressures above this, it is more usual to speak of a steam generator. A boiler or steam generator is used wherever a source of steam is required. The form and size depends on the application.
Starfish offers a comprehensive selection of fully automatic and semi-automatic steam boilers designed to optimise power usage and space utilisation while prioritising safety and delivering precise steam output to the desired locations. With a diverse range of models available, these boilers can be tailored to meet specific application requirements.
The portability of these steam generators ensures easy handling and convenient usage in various settings. These machines embody a compact design, guaranteeing reliability and userfriendliness. This line of steam boilers ensures complete safety, equipped with multiple safety mechanisms and an alarm system.
The steam boilers are equipped with high-pressure diaphragm pumps. The heater elements, made of removable stainless steel, are safeguarded by thermostats and level controllers. Its also available with gas fired models. These boilers are available in a range of capacities and options. Not only are they cost-effective to own, but they are also simple to install, robustly built, and highly versatile.
Experience seamless operation with minimal maintenance requirements, low power consumption, and a durable design.
Heater | Submersible |
Pump Motor | 24 V Diaphragm |
Volt | 415 / 3Ø or 220 / 1Ø |
Pressure Gauge | To Show Steam Pressure |
Low Water Indicator | To Protect Heater |
Buzzer | Available |
Insulation | Fiber glass wool with Aluminum Lagging |
Control Panel | PCB |
Pressure Switch | Control Steam Pressure |
Safety Cap | Work as safety valve |
Body | Mild Steel |
Boiler Shell | Stainless Steel 304 Grade |
Nipples | Brass |
Bottom Wheels | Optional |
Perforation | 8 mm |
Gauge Connector | Silicon Bush |
Boiler Shell and Connectors | Stainless Steel 304 Grade |
Nuts, Bolts And Connectors | Mild Steel |
Cutting | CNC |
Bending | CNC |
Welding | Laser TIG/MIG |
Overall Finish | Mild Steel with Powder Coated |
Logo | Starfish Engraving with LED Lights |
Net Calorific Value % | 90% |
Water Inlet in mm | 10 |
Drain Outlet in mm | 12 |
Foundation | Not Required |
Weight in Kg | 23 |

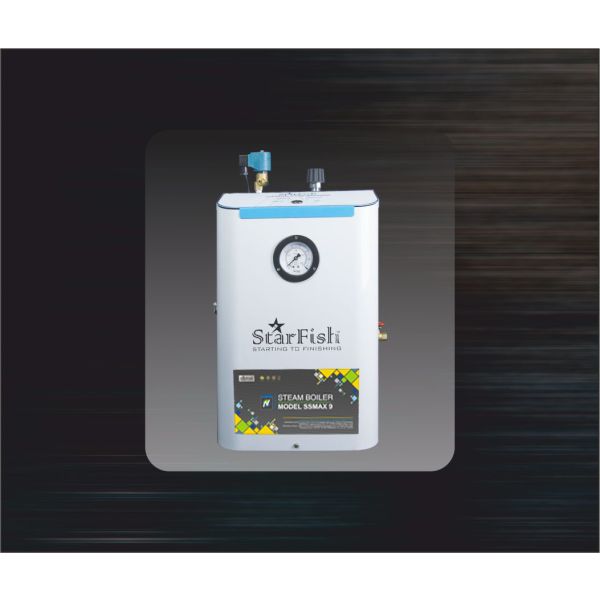

Model | SSMAX9 |
Heating Method | Electric |
Operating Type | Automatic |
Heater in kw | 9 |
Steam Out Kg/hour | 15 |
Water Storage in Liter | Auto Filling |
Water Pump in kw | 0.13 |
Dimensions | 445 x 400 x 720 |
