Steam Boiler Electrical

Steam Boilers Electrical 3 Kw SSMAX 3

Steam Boilers Electrical 9 Kw  SSMAX 9

Steam Boilers Electrical 9 Kw SSMAX 9

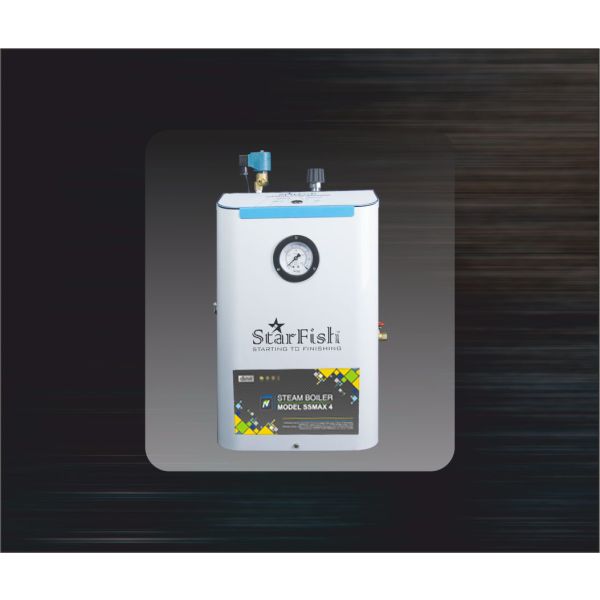

Steam Boiler Electric 4 Kw SSMAX 4

₹ 28,000.00
  • Essential safety mechanisms and an alarm system make this range of steam boilers totally safe.
  • High-pressure centrifugal pump.
  • Equipped with feedwater tanks.
  • Detachable stainless steel heater elements are protected by thermostats.
  • It is economical to own, easy to install, rigged, and versatile.
  • Low power consumption
  • Strong construction
  • Smooth functioning
  • Require less maintenance.
  • Easy availability of spares and comprehensive service.
Availability: In stock
SKU
SSMAX4

Details

A boiler or steam generator is a device used to create steam by applying heat energy to water. Although the definitions are somewhat flexible, it can be said that older steam generators were commonly termed boilers and worked at low to medium pressure but, at pressures above this, it is more usual to speak of a steam generator. A boiler or steam generator is used wherever a source of steam is required. The form and size depends on the application.

Starfish offers a comprehensive selection of fully automatic and semi-automatic steam boilers designed to optimise power usage and space utilisation while prioritising safety and delivering precise steam output to the desired locations. With a diverse range of models available, these boilers can be tailored to meet specific application requirements.

The portability of these steam generators ensures easy handling and convenient usage in various settings. These machines embody a compact design, guaranteeing reliability and userfriendliness. This line of steam boilers ensures complete safety, equipped with multiple safety mechanisms and an alarm system.

The steam boilers are equipped with high-pressure diaphragm pumps. The heater elements, made of removable stainless steel, are safeguarded by thermostats and level controllers. Its also available with gas fired models. These boilers are available in a range of capacities and options. Not only are they cost-effective to own, but they are also simple to install, robustly built, and highly versatile.

Experience seamless operation with minimal maintenance requirements, low power consumption, and a durable design.

HeaterSubmersible
Pump Motor24 V Diaphragm
Volt415 / 3Ø  or 220 / 1Ø
Pressure GaugeTo Show Steam Pressure
Low Water IndicatorTo Protect Heater
BuzzerAvailable
InsulationFiber glass wool with Aluminum Lagging
Control PanelPCB
Pressure SwitchTo Control Steam Pressure
Safety CapWork as safety valve
BodyMild Steel
Boiler ShellStainless Steel 304 Grade
NipplesBrass
Bottom WheelsOptional
Perforation8 mm
Gauge ConnectorSilicon Bush
Boiler Shell and ConnectorsStainless Steel 304 Grade
Nuts, Bolts And ConnectorsMild Steel
CuttingCNC
BendingCNC
WeldingLaser TIG/MIG
Overall FinishMild Steel with Powder Coated
LogoStarfish Engraving with LED Lights
Net Calorific Value %90%
Water Inlet in mm10
Drain Outlet in mm12
FoundationNot Required
Weight in Kg21
ModelSSMAX4
Heating MethodElectric
Operating TypeAutomatic
Heater in kw4
Steam Out Kg/hour7
Water Storage in LiterAuto Filling
Water Pump in kw0.13
Dimensions445 x 400 x 700
