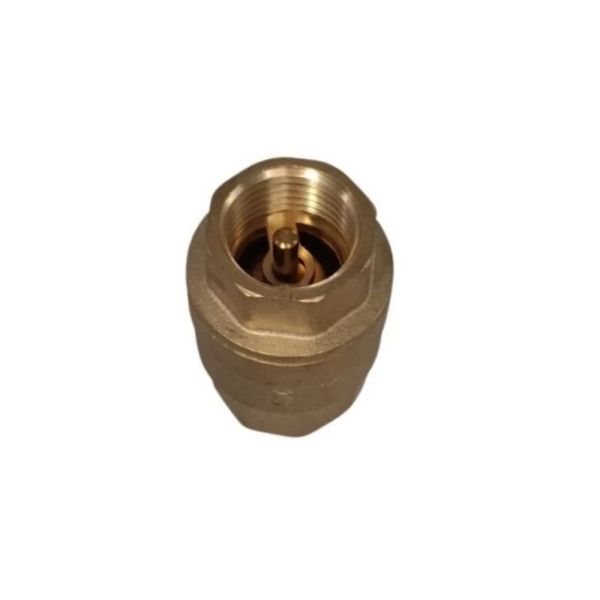

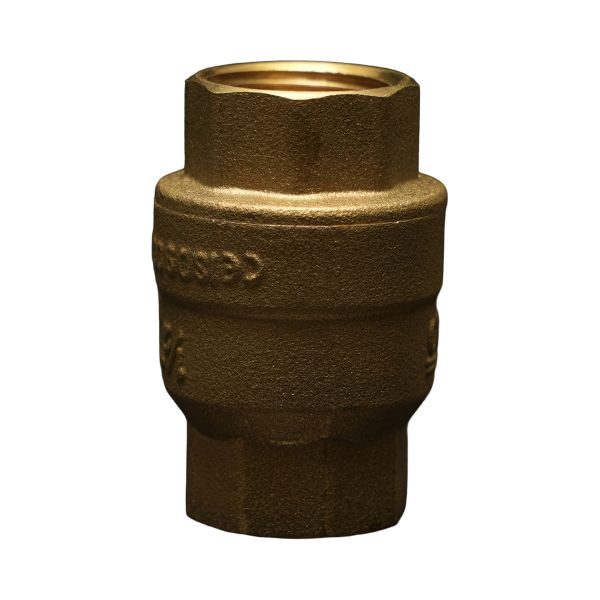

Boiler - NRV(Brass)- 1/2" - SFNRVB
₹ 450.00
Availability:
In stock
SKU
SFNRVB
Details
The NRV (Brass) - 1/2" is a Non-Return Valve (also called a Check Valve) used in steam and water lines of Star Fish SSMAX series boilers and compatible laundry presses. This simple mechanical valve, made from brass, allows fluid (steam or water) to flow in one direction only and automatically closes to prevent backflow, protecting equipment and ensuring system safety and efficiency.
• One-Way Flow Control: The core function is to permit flow in the desired direction and automatically block any reverse flow (backflow).
• Prevents Backflow & Contamination: Installed in steam or water lines to prevent hot condensate or contaminated water from flowing back into the boiler or clean supply line.
• Durable Brass Construction: The brass body offers excellent corrosion resistance and durability for steam and hot water applications.
• Reliable Mechanical Operation: Uses a spring-loaded poppet or swing mechanism that opens with forward pressure and seals shut if flow tries to reverse.
• Standard Threaded Connection: Features 1/2" threaded ports for easy installation into pipeline.
• Boiler Feed Water Line: Prevents backflow from the boiler into the fresh water supply line.
• Steam Main Header: Installed on individual equipment branches (e.g., for a Curve Bed Press) to prevent condensate from one machine flowing back into another when not in use.
• General use in any laundry fluid system where one-way flow is required.
| Model Name | SFNRVB |
| Product Type | Non-Return Valve / Check Valve |
| Material | Brass |
| Valve Type | NRV |
| Connection Type | Threaded |
| Compatible Machine | SSMAX2,SSMAX 3, SSMAX 4, SSMAX 6, SSMAX9, SCBPS 52 |
• Essential System Protection: Prevents dangerous and inefficient backflow, which can cause water hammer, contamination, or equipment malfunction.
• Improves Steam System Efficiency: By preventing condensate backflow in steam lines, it helps maintain dry, efficient steam at each outlet.
• Durable and Reliable: Brass construction ensures long service life in demanding steam and hot water environments.
• Direct OEM Replacement: Matches the size and thread specification of the original valves used in Star Fish systems.
• 1 x NRV (Brass), 1/2" (Non-Return Valve) (Model: SFNRVB)
