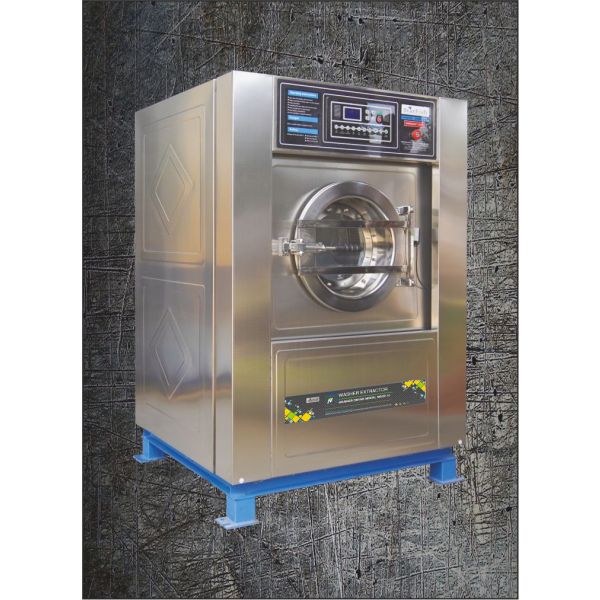

Mechanism Of Action : Our all in One washer, extractor and dryer is a-versatile and efficient laundry solution that performs washing, extracting and drying functions in the same machine. It is also Known as industrial washer cum dryer.
Blue LCD screen with dialogue interface of human operation being able to realize Intellectualized operation: automatically pouring water, pre-washing, rinsing, bleaching and cleaning.
Microprocessor, freely programmable, with 5 types of washing programs available. Easy operating.
Adopt high quality stainless steel, acid and alkali resistance, anti-corrosion, classical appearance, long life.
Automatic feeding system, aerodynamic design, flushes the material completely, without residual.
Unique structure of suspension and shake proof, greatly improves the stability of the machines, low noise.
The imported precise and durable bearing and framework oil seal assure the liability of drum precision and air proof, no leakage, so the rate of troubles is greatly reduced.
High Quality Electric Heater ensures quick drying time.
Motor Brand | Imported |
Volt | 415 / 3Ø or 220 / 1Ø |
Washing speed Rpm | 37 |
Medium extract Rpm | 400 |
High extract Rpm | 650 |
Forward/Reverse | Adjustable 0-60 Seconds |
Water Inlet | Automatic Through Solenoid Valve |
VFD | LS/Equivalent |
Washing Time | Adjustable by PCB |
Extraction Time | Adjustable by PCB |
Soap Dispensing | Automatic Through Solenoid Valve |
Water Level | Low/Medium/High |
Control panel | Feather Touch |
Water Drain | Automatic Through Valve |
No of Programme | 5 |
Manual Operation | Available |
Door open cut off | Limit Switch |
Emergency Switch | Yes |
Outer Drum | Mild Steel |
Inner Drum | Stainless Steel 304 Grade |
Perforation | Turret Punch Press |
Outer Cover | Stainless Steel 304 Grade |
Back Cover | Galvanized Iron |
Mounting Type | Soft |
Base Frame | Mild Steel Channel |
Springs | Helical Compression |
Shock absorber | Light Duty |
Doors | Stainless Steel 304 Grade with Double Lock |
Belt Adjustment | Screw Rod |
Shaft Gland | Housing With Shaft, Bearing & Oil Seal |
Nuts, Bolts | Mild Steel |
Soap Cup | 2 |
Cutting | CNC |
Bending | CNC |
Welding | LaserMIG/TIG |
Overall Finish | Matt Finished Stainless Steel |
Logo | Starfish Engraving with LED Lights |
Motor Power in kw | 1.5 |
Water Inlet in mm | 15 |
Drain Outlet in mm | 50 |
Heater in kw (Optional) | 6 |
Foundation | Required |
Weight in Kgs | 500 |
Heating Type | Electric |
Heater in Kilowatt | 4 |
Consumption/Hr | 3 Unit |
Model | SWXD 10 |
Washing in Kg | 10 |
Drying in Kg | 5 |
Drum Size in mm | Ø630 x 320 |
Drum Volume in Ltr | 100 |
Liquor Ratio | 1:10 |
Dimension in mm | 850 x 900 x 1500 |
