Industrial Vacuum Ironing Table

Vacuum Ironing Machine (Standard Press Series) Double Motor SVITD 54

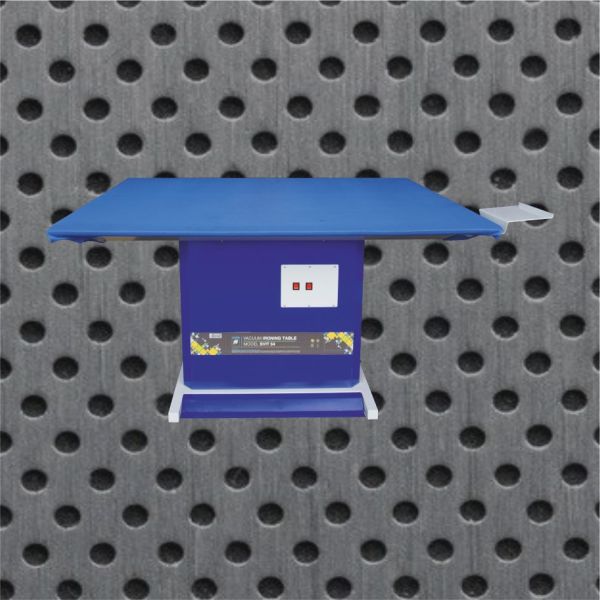

Vacuum Ironing Machine (Standard Press Series) Single Motor SVIT 54

₹ 25,000.00
  • A vacuum table is an arrangement for holding clothes or fabrics during machining.
  • This device consists of a perforated tabletop with a vacuum chamber and a motor to keep the vacuum chamber at a diffuse enough pressure.
  • The clothes or fabrics are placed on top of the vacuum chamber and are thus held in place by the pressure differential between the chamber and the outside air.
Availability: In stock
SKU
SVIT54

Details

Vacuum lroning Tables are equipped with Blue/Bonded Foam and Polyester Cloth, providing a high quality surface for ironing. These tables are available in single phase and can be fitted with a buck attachment optional.

Our vacuum technology ensures that moisture and heat are extracted instantly, resulting in creasefree and dry garments. The strong vacuum feature keeps the garments dry & rapidly cools them down. Designed for full length leg operation, these tables can be conveniently foot operated along their entire length. The table top is perforated, allowing for powerful and instantaneous suction.

The symmetric design of the perforations prevents steam out with aluminum sheet from entering the table. The mechanical and electrical components of the table are easily removable and can be replaced within minutes, making maintenance a breeze.

Motor BrandSpecially Designed by us
Volt415 / 3Ø or 220 / 1Ø
Motor Speed RPM2880
Table Top Cloth TablePolyester Cloth
Table FoamBlue | Bonded
Control PanelBy Switches
Light Fitting [Optional]LED Tube
PedalLimit Switch
Body TypeMild Steel
Table Top SheetMild Steel
Perforation Turret Punch Press
Cloth TrayMild Steel
Iron Box TrayMild Steel
Aerial SpringChrome Plated Mild Steel
Side CoverMild Steel
Pedal Base FrameMild Steel
Nuts, Bolts And ConnectorsMild Steel
Top and bottom ConnectorNuts and Bolts
CuttingCNC Cutting
BendingCNC Bending
WeldingLaser MIG/TIG
Overall FinishPower Coated
LogoStandard Sticker
Motor Power in kw0.5
Table Top Heater kw [Optional]2
FoundationNot Required
Weight in Kgs86
ModelSVIT 54
Table Size in mm1500 x 1200
Number of Motors1
Suction Area in mm1200 x 750
Over All Dimension in mm1700 x 1200 x 900
3
5
