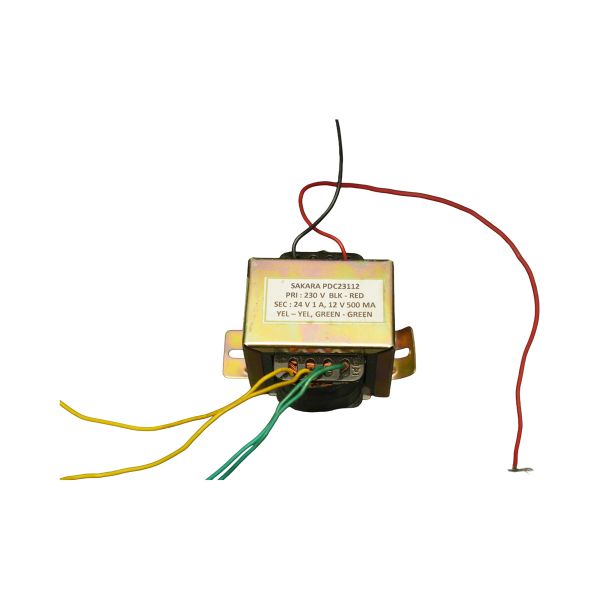

Boiler - Transformer 24V Boiler - SFT24VB
₹ 742.00
Availability:
In stock
SKU
SFT24VB
Details
The Transformer 24V/12V Boiler is a specialized dual-output step-down transformer for Star Fish SSMAX series automatic steam boilers. It converts the main 220V AC incoming voltage to two separate, safe low-voltage supplies: a 24V AC output primarily for the water feed pump and a 12V AC output for the main PCB and other control circuitry. This unit is supplied with pre-attached wires for easy installation.
• 220V AC Input: Designed to connect to standard single-phase 220V AC workshop power.
• Dual Safe Voltage Outputs: Provides two isolated low-voltage outputs: 24V AC (for pump) and 12V AC (for control board).
• Powers Critical Components: The 12V output supplies the main PCB, sensors, and indicators. The 24V output supplies the water feed pump.
• Adequate Power Capacity: Rated for 12W total output, sufficient to power both systems.
• Pre-Wired for Installation: Comes with pre-attached input and output wires (no lugs), simplifying the connection process.
• Efficient Copper Windings: Built with copper windings for efficient power conversion and durability.
• Primary dual-voltage control power supply in Star Fish SSMAX2, SSMAX 3, SSMAX 4, SSMAX 6, and SSMAX9 model automatic steam boilers.
• Replacement part for boilers with power supply issues affecting either the pump or the control board.
| Model Name | SFT24VB |
| Product Type | Dual Output Step-Down Control Transformer |
| Material | Copper |
| Input Voltage | 220V AC |
| Output 1 Voltage | 24V AC |
| Output 2 Voltage | 12V AC |
| Total Output Power | 12 W |
| Output Current | 2 A |
| Compatible Machine | SSMAX2,SSMAX 3, SSMAX 4, SSMAX 6, SSMAX9 |
• Centralized Power Solution: Replaces two separate transformers, simplifying the boiler's electrical design.
• Restores Both Pump & Control Functions: A failure here can disable both the automatic water feed and the entire control system.
• Easy to Install: Pre-attached wires make replacement quicker and more straightforward.
• Direct OEM Replacement: An exact match for the original transformer's voltage specifications and wiring.
• 1 x Dual Output Transformer 24V/12V for Boiler (Model: SFT24VB) with pre-attached wires.
