Boiler - Metal Push Button (19 Mm 220 V) - SFMPB
₹ 240.00
Availability:
In stock
SKU
SFMPB
Details

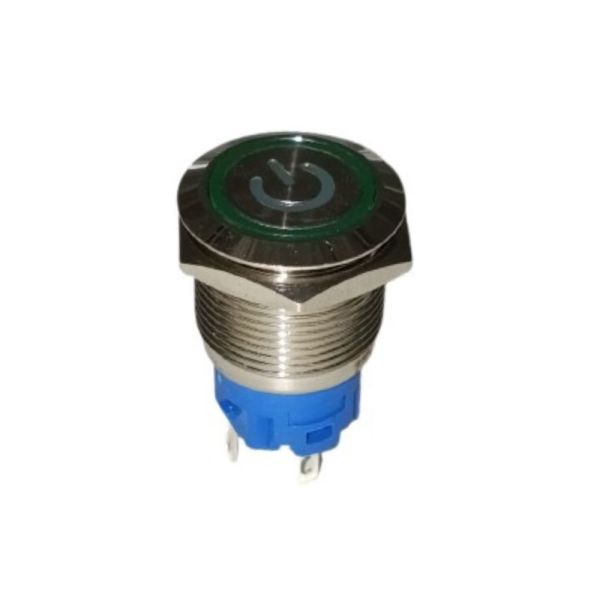

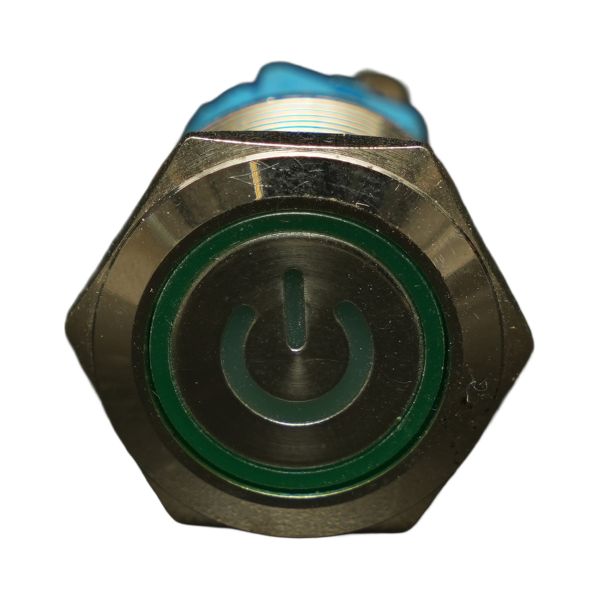

The Metal Push Button is the primary manual control switch on the operator panel of Star Fish SSMAX series automatic steam boilers. This 19mm diameter, stainless steel push button is rated for 220V and is used to start the boiler. When pressed, it completes the control circuit, initiating the automatic startup sequence. It is designed to plug into a matching 5-wire connector for easy installation and service.
• Primary Start Control: The main button used to start the boiler when pressed, initiating the automated startup sequence.
• 220V Rating for Control Circuits: Rated for 220V and 6A, suitable for switching control relays in the boiler's electrical panel.
• Durable Metal Actuator: Features a stainless steel (SS) button for a professional look and resilience in an industrial laundry environment.
• Standard 19mm Mounting: The 19mm diameter is an industry standard for panel cutouts.
Plug-in Design for Easy Service: Designed to plug into a compatible 5-wire connector, allowing for tool-free replacement if the button fails.
• Start Button on Star Fish SSMAX2, SSMAX 3, SSMAX 4, SSMAX 6, and SSMAX9 model boiler control panels.
• Can also be used for other functions like Stop or Reset, depending on the wiring configuration.
| Model Name | SFMPB |
| Product Type | Industrial Push Button Switch |
| Material | Stainless Steel |
| Function | Starts the boiler |
| Voltage | 220V |
| Current | 6 A |
| Mounting Size | 19 MM |
| Compatible Machine | SSMAX2,SSMAX 3, SSMAX 4, SSMAX 6, SSMAX9 |
• Essential for Operation: Replaces the critical switch that operators use to start the boiler every day.
• Built for Industrial Use: The stainless steel construction ensures it can withstand frequent pressing.
• Simplifies Maintenance: The plug-in design means a failed button can be replaced in minutes without rewiring the control panel.
• Direct OEM Replacement: Matches the original button's size, rating, and connector for perfect fit and function.
• 1 x Metal Push Button (Start), 19mm, 220V (Model: SFMPB).
