Tumble Dryer - 12A Nc Contactor - NC12NC
₹ 1,100.00
Availability:
In stock
SKU
NC12NC
Details

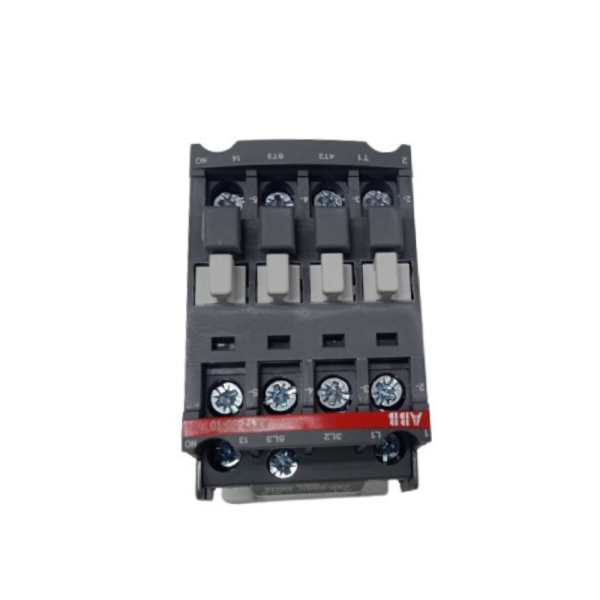

The NC12NC Contactor is a 3-pole + auxiliary contact magnetic switch designed for universal industrial applications including Tumble Dryers, Washing Machines, Pressing Machines, Hydro Extractors, and other industrial equipment. This contactor features three main poles (L1, L2, L3) that are Normally Open (NO) for switching power circuits, plus a separate auxiliary contact that is Normally Closed (NC) for control and status feedback. Operating on 220V AC coil voltage with low power consumption of 3W, it provides reliable switching for medium-current circuits across various machinery types. With screw/lug connections and durable plastic housing measuring 74x44mm, it is a versatile control component for industrial electrical systems.
• Universal Application: Suitable for all industrial machines requiring contactor control
• 3 Main Poles (L1, L2, L3): Three independent power switching contacts
• Main Contacts Configuration: Normally Open (NO) -- close when coil energized
• Auxiliary Contact: Separate Normally Closed (NC) contact for control/feedback
• 12A Current Rating: Handles medium-current circuits on main poles
• 220V AC Coil: Direct mains voltage operation
• Low Power Consumption: 3W coil operation energy efficient
• Screw/Lug Terminals: Secure electrical connections for all contacts
• Compact Size: 74x44mm fits standard control panels
• Industrial Durability: Built for continuous commercial operation
• Motor control in industrial machinery
• Heater switching in various equipment
• Control circuit interfacing across different machine types
• Power distribution in industrial control panels
• Universal replacement for contactors in laundry and industrial equipment
| Model Name | NC12NC |
| Category | Conector / Magnetic Switch |
| Coil Voltage | 220V AC |
| Main Contacts (L1, L2, L3) | 12A, Normally Open (NO) |
| Auxiliary Contact | Normally Closed (NC) |
| Number of Poles | 3 Main + 1 Auxiliary |
| Power Consumption | 3W |
| Dimensions | 74x44mm |
| Connector Type | Screw/Lug |
| Material | Plastic Housing |
| Compatible Machine | STDMG 15, STDMG 30, STDMG 50 |
• Universal Compatibility: Works across all industrial machine types
• Complete Switching Solution: Three NO main poles for power + one NC auxiliary for control
• Medium Current Capacity: 12A rating on main poles for various circuits
• Control Feedback: NC auxiliary provides status signaling or interlock capability
• Direct 220V Operation: No transformer needed for coil
• Energy Efficient: Low 3W coil consumption
• Compact Design: Space-saving 74x44mm size
• Easy Installation: Screw terminals for all contact wiring
• Industrial Grade: Built for continuous commercial operation
• 1 x 12A Universal Contactor (NC12NC)
