Tumble Dryer - Spark Rod 3 Pin - NSR3P
₹ 1,800.00
Availability:
In stock
SKU
NSR3P
Details

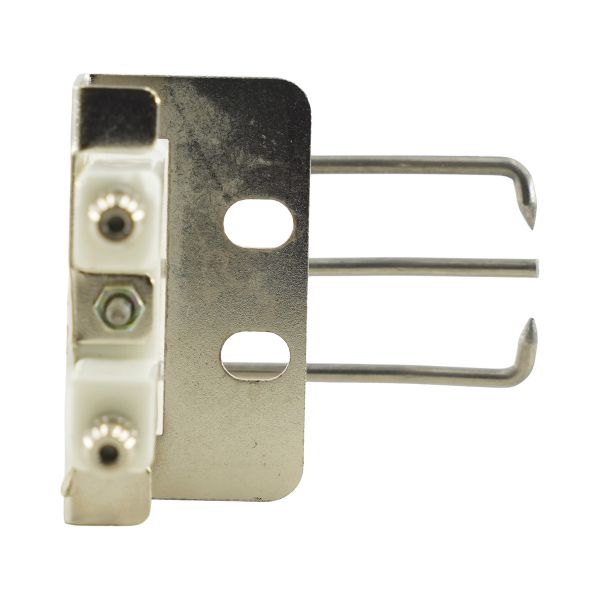

The NSR3P Spark Rod is a 3-pin ignition electrode designed for Gas-powered Industrial Tumble Dryer models (15KG, 30KG, and 50KG) and Saree Polishing Machines. This ceramic and stainless steel spark rod generates the electrical spark needed to ignite gas in burner systems. Operating at 15V with high-temperature capability (1350°C), it provides reliable ignition in demanding industrial environments, featuring screw/lug connections and dimensions of 50x80mm for easy installation and maintenance.
• 3-Pin Design: Multiple electrode configuration for reliable spark generation
• High Temperature Rating: Withstands up to 1350°C near burner flames
• 15V Operation: Low voltage ignition for safety and efficiency
• Ceramic & SS Construction: Ceramic insulation with stainless steel electrodes
• Screw/Lug Connections: Secure electrical connections
• 50x80mm Dimensions: Standard size for industrial dryer installations
• Reliable Ignition: Consistent spark generation for gas burner ignition
• Single Phase Compatibility: Works with standard industrial electrical systems
• Ignition electrode replacement for gas-powered industrial tumble dryers
• Spark generation for saree polishing machine gas burners
• Replacement for worn or damaged spark rods in gas heating systems
• Ignition system maintenance for gas-powered laundry equipment
| Model Name | NSR3P |
| Category | Spark Rod / Ignition Electrode |
| Voltage | 15V |
| Temperature Rating | 1350°C |
| Connection Type | Screw/Lug |
| Material | Ceramic & Stainless Steel (SS) |
| Dimensions | 50x80mm |
| Pin Configuration | 3-Pin Design |
| Compatibility | STDMG 15, STDMG 30, STDMG 50 |
• Reliable Ignition: 3-pin design ensures consistent spark generation
• High Temperature Capability: Withstands extreme burner temperatures
• Dual Material Construction: Ceramic insulation with durable SS electrodes
• Easy Installation: Screw/lug connections and standard dimensions
• Industrial Grade: Built for continuous commercial operation
• Universal Application: Works with dryers and polishing machines
• Direct Replacement: Exact fit for existing spark rod systems
• Safety Designed: Proper insulation and electrical separation
• 1 x 3-Pin Spark Rod (NSR3P) with ceramic insulation and stainless steel electrodes
