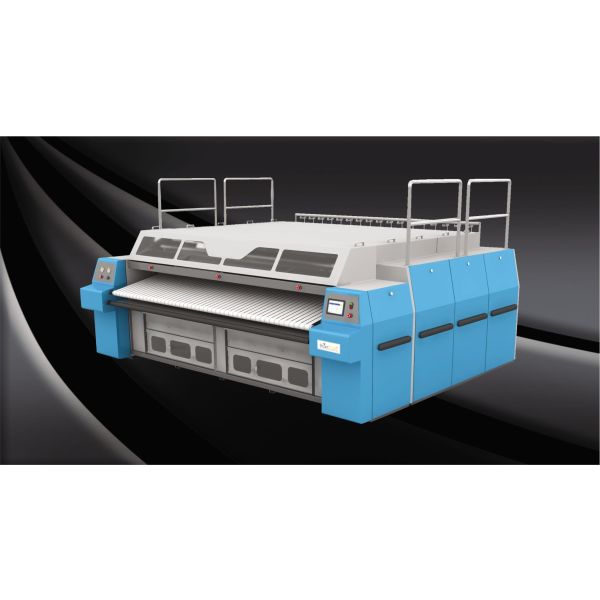

Our chest work ironer is a powerful and efficient machine that can iron your fabrics at a high speed and quality under low pressure (20-50m/min). It has the following features:
Air Exhaust: It has an air exhaust system that protects the environment from the heat & steam generated by the ironing process. Synchronized Speed: It ensures that each roller has the same speed and works in harmony with the folder and stacker to achieve a smooth and consistent ironing result.
Data Recording: It can record customer information and data for easy management and tracking of the ironing performance.
Adaptive Balance Mechanism: It has a sophisticated mechanism that combines the roller, chest, bridge, support cylinder, connecting rod and balance shaft to form a balanced pressure distribution on the drum and chest surface.
Speed Adjustment: It has a speed pulley that directly sets and adjusts the speed difference between the drums to ensure high ironing quality.
| Motor Brand | Imported |
| Blower Motor | Own Brand |
| VFD | LS |
| Gear Box | Italy Bongiflioli |
| Volt | 415 / 3Ø |
| Drying speed RPM | Adjustable |
| Control Panel | PCB |
| Front Panel | Feather Touch |
| Manual Operation | Available |
| Ironing Belt | Nomex |
| Finger Guard | Limit Switch |
| Emergency switch | Yes |
| Chest | Stainless Steel 304 Grade |
| Main Roller | Stainless Steel 304 Grade |
| Supporting Rollers | Stainless Steel 304 Grade |
| Side Panel | Mild Steel |
| Side Cover | Mild Steel |
| Base Frame | Mild Steel Channel |
| Doors | Mild Steel |
| Ironing Belt Adjustment | Screw Rod |
| Shaft Gland | Housing with Shaft, Bearing and Drive System |
| Nuts, Bolts And Connectors | Mild Steel |
| Control Box | Mild Steel with Lock |
| Cutting | CNC |
| Bending | CNC |
| Welding | Laser MIG/TIG |
| Overall Finish | Powder Coated |
| Logo | Starfish Engraving with LED Lights |
