Industrial Flat Work Ironer

Industrial Flat Work Ironing Single Roller Electric 400 M 1600 mm SFWE4 1600

Industrial Flat Work Ironer Electric

Industrial Flat Work Ironer Single Roller Electric 800 MM 2000 mm SFWE8 2000

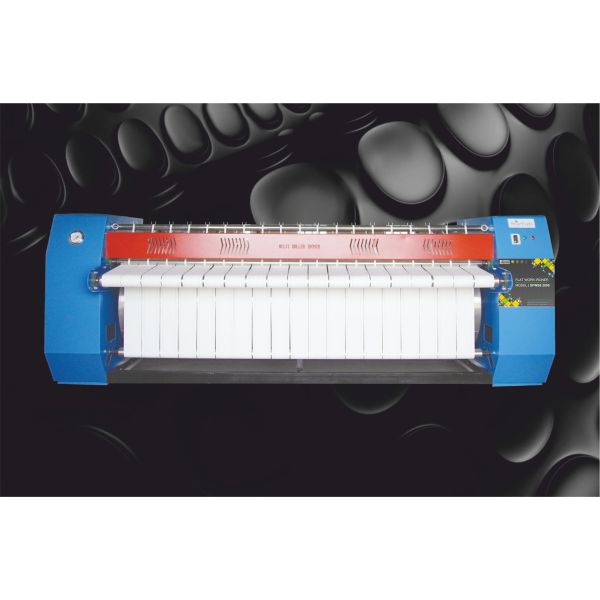

Industrial Flat Work Ironer Single Roller Gas 800 MM 2000 mm SFWS8 2000

₹ 445,000.00
  • Premium Quality Ironing.
  • Safe-enabled operation system.
  • High efficiency.
  • Low consumption of energy.
Availability: In stock
SKU
SFWS82000

Details

Ironer has Variable Frequency Drive for speed adjustment. Customer can change speed according to fabric thickness to enhance ironing efficiency. Ironing roller of Diameter 800 mm is made with Stainless steel. Roller uses Galvanization technology to extend the life.

Heating by using stainless steel cylinder shows good effect. Maximum touchable area 300 Degree roller circle effectively increase work area and improve ironing speed, heat energy and reduce the Running cost.

Drive motor linked with gear box will ensure stable running of roller. The main machine made by cutting laser machines and welded with high quality welding will provide the elegant look, smooth running, Accurate transmission, quality running and long life span. Ironer belt of best quality which withstand high temperature. Compact structure saves a lot of space by small covering area.

Several types of heating type by outside connecting steam, gas and electric are available. Also available with Return feed and Rear return is optional.

Motor Brand Imported
Blower Motor Own Brand
Volt 415/ 3Ø
Drying Spees Rpm Adjustable Through VFD
Control PanelManually Operated by Switches
Temperature 140°
Front Panel ( Optional )Feather Touch
Ironing Belt Cotton
Ironing Belt Width 150 mm



Finger Guard Limit Switch
Emergency SwitchYes
Main Drum Stainless Steel 304 Grade
Drum Thickness4 mm
Supporting Rollers Mild Steel Covered with SS Sleeve
Side Panel Mild steel
Side Cover Mild Steel
Back Cover Mild Steel
Base Frame Mild Steel Channel
Ironing Belt Adjustment Screw Rod
Shaft Gland Plumbe Block Bearing
Nuts,Bolts and Connectors Mild Steel
Control Box Mild Steel with Lock
Cutting CNC
BendingCNC
Welding Laser MIG/TIG
Overal Finish Powder Coated
Logo Starfish Engraving with LED Lidhts
Motor Power in kw 1
Blower Motor in kw
Heating Type Steam
Heater in Kw -
Consumption Per Hour 80 Kg
Foundation Not Required
Weight in Kgs 900
Model SFWS8 2000
No of Rollers Single
Roller Length in mm2000
Roller Dia in mm800
Speed of Ironing m/min7.5
Steam Inlet in mm37
Pressure of Steam Mpa 0.4-0.6
Gas Pressure in Mpa -
Over All Dimension in mm3200 x 1400 x 1250
