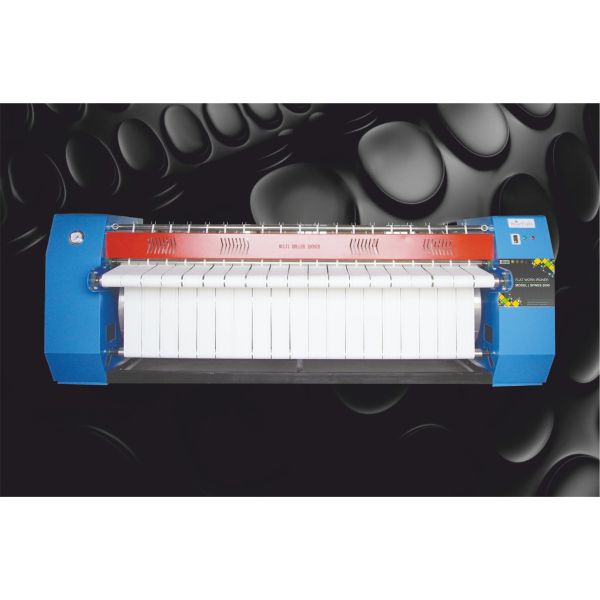

Industrial Flat Work Ironer Single Roller

Industrial Flat Work Ironer Single Roller Gas 800 MM 2000 mm SFWS8 2000

Industrial Flat Work Ironing Single Roller Electric 400 M 1600 mm SFWE4 1600

₹ 280,000.00
  • Premium Quality Ironing
  • Safe-enabled operation system
  • High efficiency
  • Low consumption of energy
Availability: In stock
SKU
SFWE41600

Related Products

Details

Ironer has a variable-frequency drive [LS] for speed adjustment.

The customer can adjust speed according to fabric thickness to improve ironing efficiency.

The ironing roller has an 800 mm diameter and is made of stainless steel.

Roller uses galvanization technology to extend its life.

Heating by adopting a stainless steel cylinder presents a good effect.

Maximum touchable area 300 Degree roller circle effectively expands the work area and improves ironing speed, and heat energy and reduces the Running cost.

The roller will run continuously if the drive motor is connected to a gearbox.

The main machine, manufactured by cutting laser machines and welded with high-quality welding, has a beautiful look and runs smoothly.

Precise transmission, quality running, and a long lifespan

High temperatures are not a problem for high-quality iron belts.

Because of its small covering area, a compact structure saves a lot of space.

Several types of heating by outside connections—steam, gas, and electric—are optional.

Also, available return feed and rear return, are optional.

Motor Brand ABB / Imported / Equivalent
Volt 415
Drying Speed Rpm Adjustable
Drying Time5 Meters per minute ( Depends cloth thickness )
Control Panel Mechanical
Front Panel Feather Touch
Temperature 150 deg maximum
Manual Operation Yes
Ironing Belt Polyester
Ironing Belt Width150 mm



Finger Guard Door Limit Switch
Emergency switchYes
Steel BrandTATA / JSW / Equivalant
Main drumStainless Steel 304 ( ASTM 240 Grade 304 )
Main drum construction Polished and statically balanced and having 3 Internal supports
Main drum specificationMaximum of 0.85 mph pressure and 173 deg temperature
Supporting Rollers Mild steel covered with Stainless steel tubes
Side Panel Mild steel - IS 513 D Grade CRCA
Side Cover Mild steel - IS 513 D Grade CRCA
Back CoverMild steel - IS 513 D Grade CRCA
Base Frame Mild Steel Channel
Doors Mild steel - IS 513 D Grade CRCA with handle
Motor Belt Ajustment Yes
Ironing Belt Adjustment Yes
Shaft Gland Bearing with plumbing block
Nuts,Bolts And Connectos Mild steel
Control Box & Lock Mild steel with Lock
Mounting Type Soft
Cutting CNC Laser With N2 Gas
Bending CNC Bending
Welding MIG / TIG /ARC /GAS / SPOT
Material Mild steel with powder coating
Powder coatingEpoxy with seven time process
Logo Starfish Engraving with LED Light up
Motor Power in Kw 0.75
Blower Motor0.25
Heating TypeElectric
Heater in Kilowatt18
Consumption Per Hour 12
Weight in Kgs 800
Model SFWE 1600
No of Rollers Single
Roller Length in mm 1600
Roller Dia in mm 800
Speed of Ironing  m/min 7.5
Pressure of Stem Mpa -
Gas Pressure -
Over All Dimension in mm 2700 × 1400 × 1250
